Distributed BESS for C&I, Utility-scale Applications
eBlock-418A
Distributed ESS for applications such peak shaving, renewable penetration, capacity market, frequency regulation and grid-forming etc.

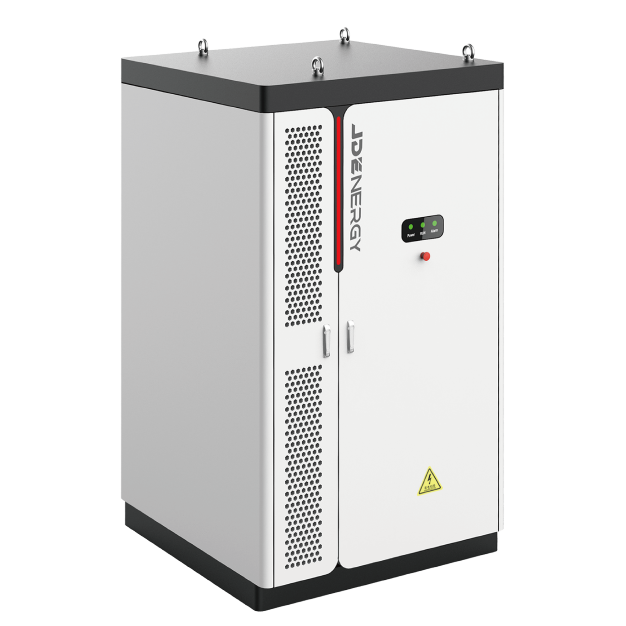

The capacity of eBlock-418A is 209kW/418kWh, including PCS, battery system (DC voltage 1165-1498V), battery management system (BMS), communication management system, thermal management system. The eBlock-418A adopts a modular unit design, with an AC 690V output, and can be directly connected in parallel on the AC side for capacity expansion. JDEnergy is featured with: BloombergNEF Tier1 Global Energy Storage Manufacturer; China's No.1 energy storage system integrators in terms of shipment volume on user-side in 2024; China's No.1 energy storage system integrators in terms of shipment volume on user-side in 2023.

JDEnergy 209kW/418kWh Energy Block
Distributed BESS for C&I, Utility-scale Applications
  • 10% higher usable capacity with true 100% depth of discharge (DoD)
  • Integrated high quality and high cycle life CATL LFP cell, cycle times >10000 times
  • ≥90% AC-side conversion efficiency for outstanding economic value
  • Bankable. From Bloomberg Tier 1 Manufacturer JD Energy, a market leader in distributed energy storage
  • Certified. eBlock-418A system certified with CEI 0-16, ready for the Italian MV grid connection applications
Technical Specifications

eBlock-418A Specifications

  • Item/Model
    eBlock-418A
  • Cell Type
    LFP 3.2V/314AH
  • Configuration
    416S1P
  • Nameplate Capacity
    418kWh
  • DC Voltage Range
    1165~1498V
  • AC Rated Power
    209kW(215kW Derating)
  • AC Output Voltage
    690V±15%
  • Maximum System Efficiency
    ≥90%
  • Depth of Discharge
    100% DoD
  • Communication Interface
    LAN
  • AC Current Distortion Rate
    <3%
  • DC Component
    < 0.5%lpn
  • Number of Cycles
    ≥7000
  • System Protection Level
    IP55
  • Operating Temperature
    -35℃~55℃
  • Operating Humidity
    0%RH~ 95%RH (No condensation)
  • Noise
    < 70dB
  • Dimensions (W x HxD)
    1400mm×1300mm×2350mm
  • Altitude
    ≤2000m
  • Thermal Management Methods
    Liquid cooling (battery)
  • Total Weight
    3800kg
  • Certification
    Grid connection: RFG+EN50549-2, CEI 0-16, VDE-AR-N 4110&4120; Safety &EMC: IEC 62619, IEC63056, IEC62477, IEC61000, IEC60730, IEC62933, UL9540A, UN38.3
