Stackable Residential Energy Storage System
EP2000+N/B700
10.5 kW-20 kW | 14.7 kWh-51.6 kWh | Three-Phase | On-Grid / Off-Grid

The BLUETTI EP2000 is engineered to deliver reliable performance, providing output power ranging from 10.5kW to 20kW, with a capacity between 14.7kWh and 51.6kWh. About Bluetti Founded in 2009, BLUETTI has been a pioneer in clean energy solutions. It is featured with: 110+ Countries & Regions; 15+ Years of Innovation; 4M+ Trusted Global Users; 1,200+ Distribution Partners Worldwide.

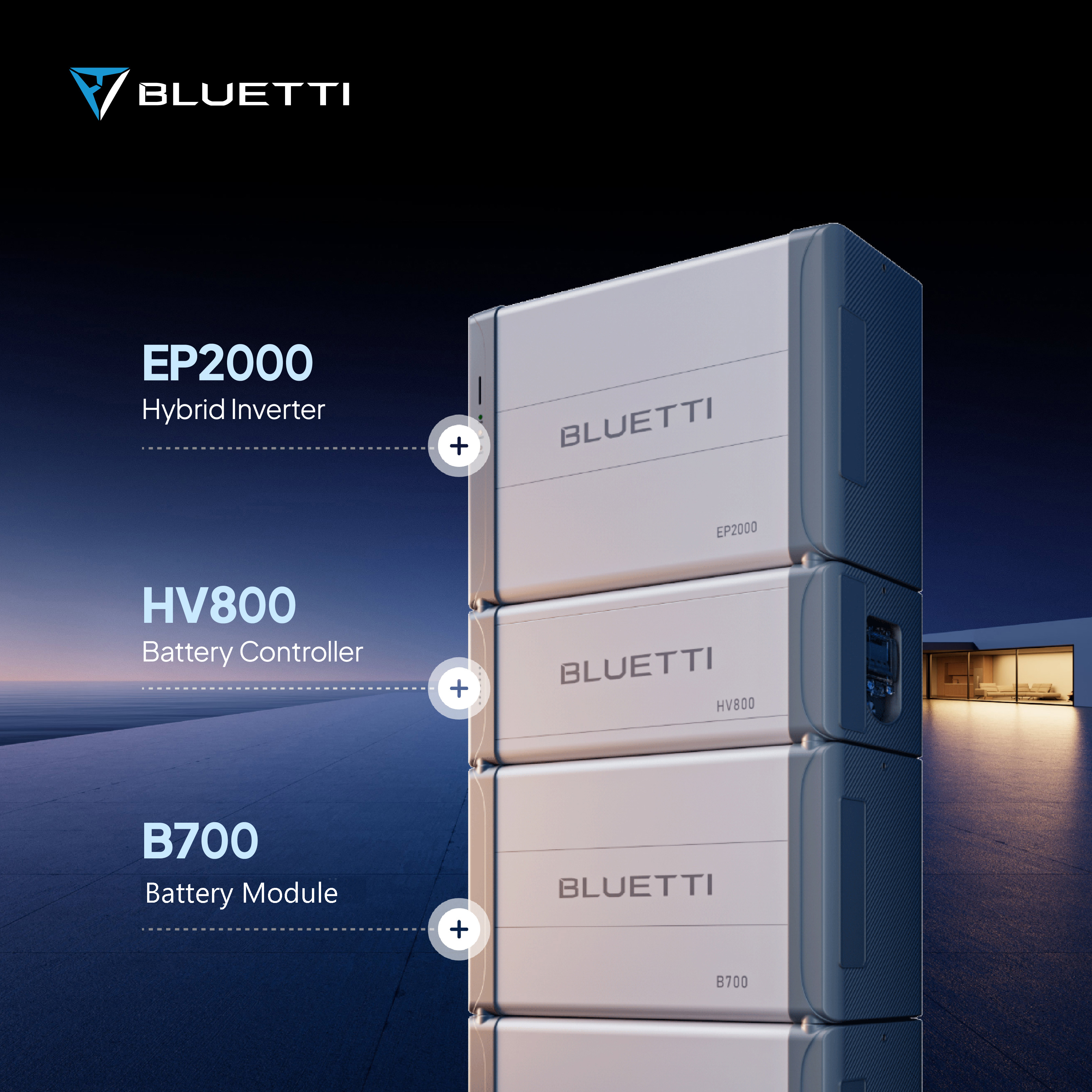

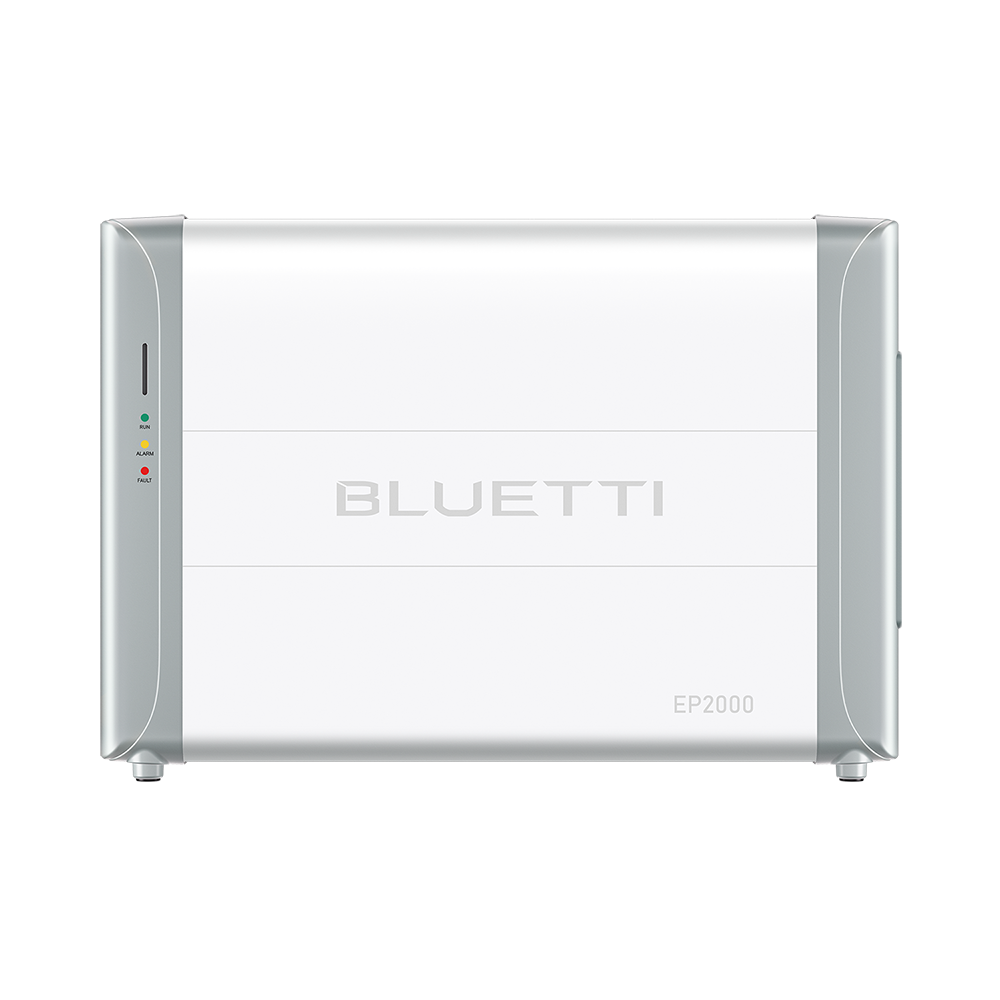

BLUETTI EP2000&B700 ESS
Stackable Residential Energy Storage System
  • 10-Year Warranty. Robust BESS with 10 years’ guarantee, tailored for the high-end demands in the EU
  • Powerful. Max. 30kW PV input, 20kW AC output
  • Capacity flexible. 7.37kWh per pack, achieving a flexible capacity of 14.7~51.6kWh with 2~7 packs

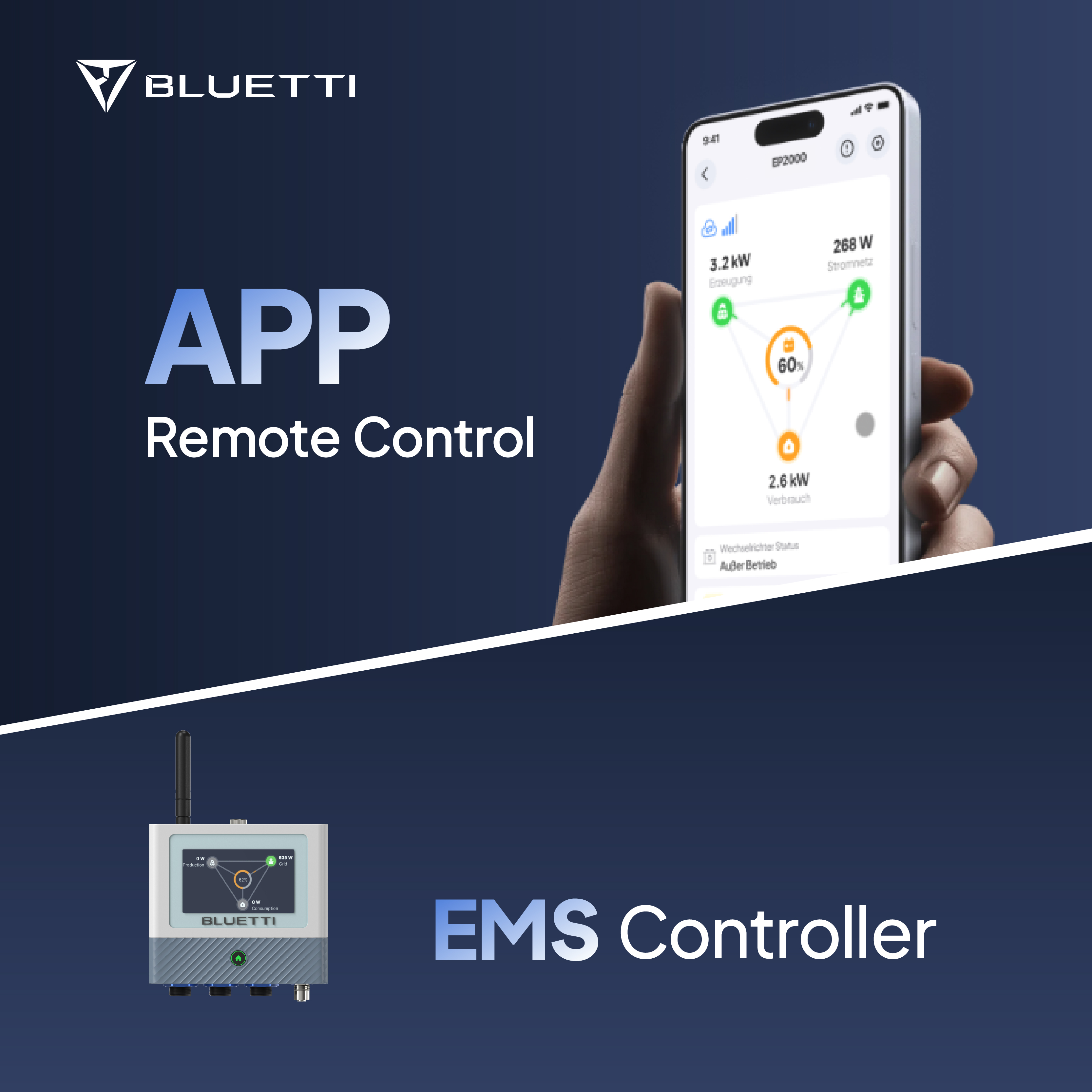

  • Smart. Choose from 4 working modes via an intuitive App
  • Plug-and-play installation, with easy wiring for essential and normal loads
Technical Specifications

PV Input

  • Max. Input Power
    30kW
  • Recommended Max. PV Array
    36kWp
  • MPPT Voltage Range / Rated Voltage
    160V-850V / 500 V
  • MPPT Channel / Strings per MPPT
    2 / 2
  • Max. lnput Current per String
    15A
  • Single String Short Circuit Current
    20 A
  • Initial input voltage
    180V
  • Max. input voltage
    1,000V

AC Output (Backup)

  • Rated Power
    10.5 kW with 2xB700; 15.5 kW with 3xB700; 20 kW with (4−7) xB700
  • Rated Output (With PV input )
    20kW
  • Rated Voltage
    230 / 400 VAC
  • Frequency
    50 Hz
  • Phase
    3L / N / PE

General

  • Operating Temperature
    -20°C to 60°C
  • Noise
    ≤50dB
  • Net Weight
    60 kg
  • Cooling
    Forced Air Cooling
  • Connectivity
    USB / Wi-Fi / Bluetooth
  • Protection Rating
    IP65
  • Input Apparent Power (Bypass + Charging)
    40 kVA Max.
  • Warranty
    10 Years
  • Dimensions (L x W x H)
    670 mm × 280 mm × 460 mm
  • Input Frequency
    50 Hz
  • Switch Over Time to Backup Power
    <10 ms

Compliances

  • Grid Connection**
    Germany: VDE-AR-N 4105+NA Schutz; Netherlands: EN50549_1&10; Italy: CEI 0-21; Austria: EN50549+TOR Erzeuger Type A
  • Safety
    IEC 62109−1, IEC 62109−2, EN 62109−1, EN 62109−2
  • EMC
    EN/IEC 61000−6−3, EN/IEC 61000−6−1
  • RoHS
    2011 / 65/EU and (EU) 2015/863

General

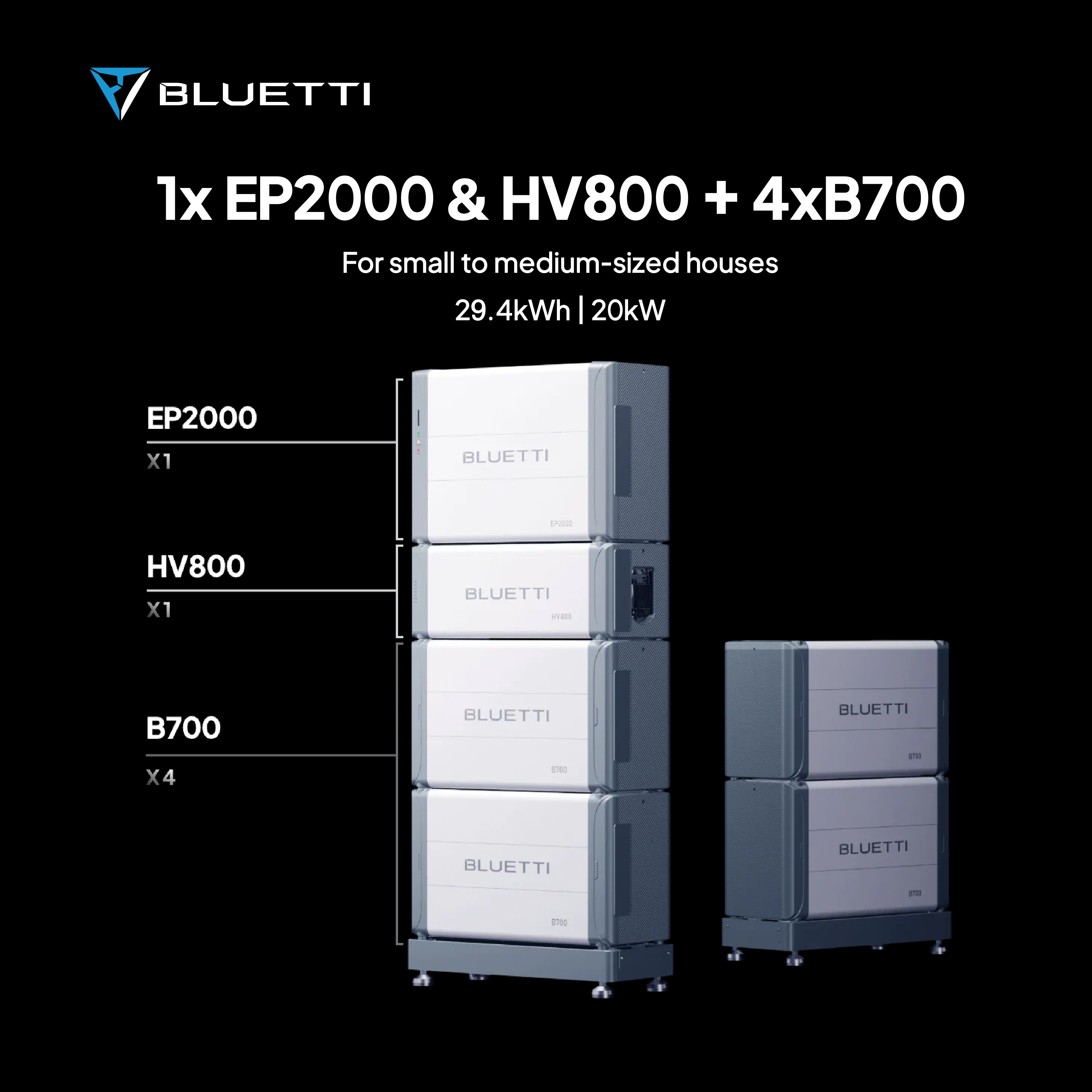

  • Supporting Battery Modules
    (2~7) xB700 Batteries
  • Voltage Range
    130V-800V
  • Max. Current
    70A Max.
  • Net Weight
    19kg
  • Dimensions (L x W x H)
    670 mm × 280 mm × 249 mm
  • Noise
    <25dB
  • Warranty
    10 years

Compliances

  • Safety
    IEC62619, EN62619, VDE-AR-E 2510−50, UN38.3
  • Emissions
    EN/IEC 61000−6−3, EN/IEC 61000−6−1
  • RoHS
    2011/65/EU and (EU) 2015/863

General

  • Battery Chemistry
    LiFePO₄
  • Capacity
    7,372.8Wh
  • Protection Grade
    IP65
  • Net Weight
    72kg
  • Dimensions
    670 mm×280 mm×386 mm
  • Compliances
    Same as HV800
